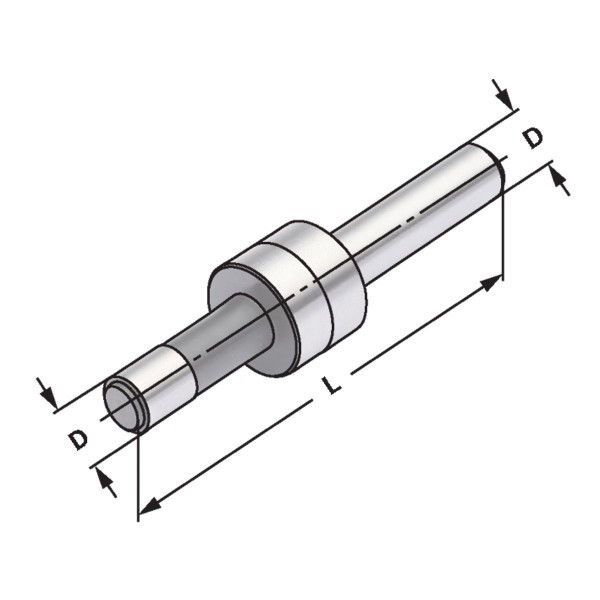

10 - 84 - 10
D = 10
L = 84
d = -
Application:
For alignment of component reference surfaces or edges. Spindle speed approx. 600 rpm.
Version:

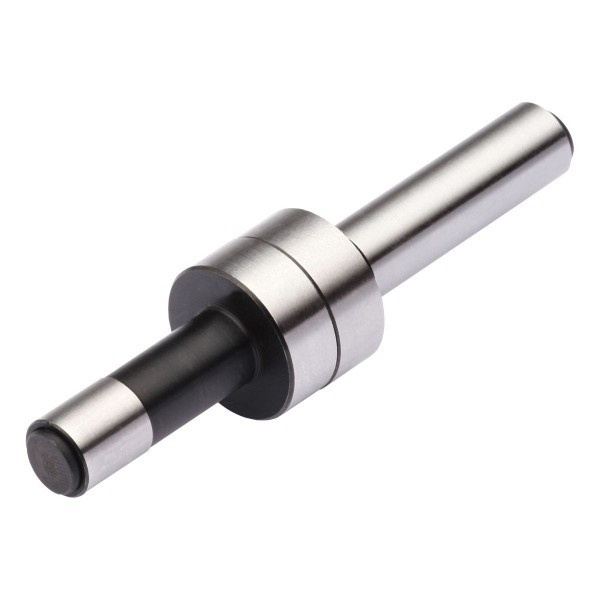

The contact point has a flexible connection to the body via a spring, with an alignment accuracy of 0.01 mm. All parts fully hardened and ground.
Size 10: With parallel contact point 10 mm Ø.
Size 10/4: With stepped contact point 10 and 4 mm Ø."
